Description

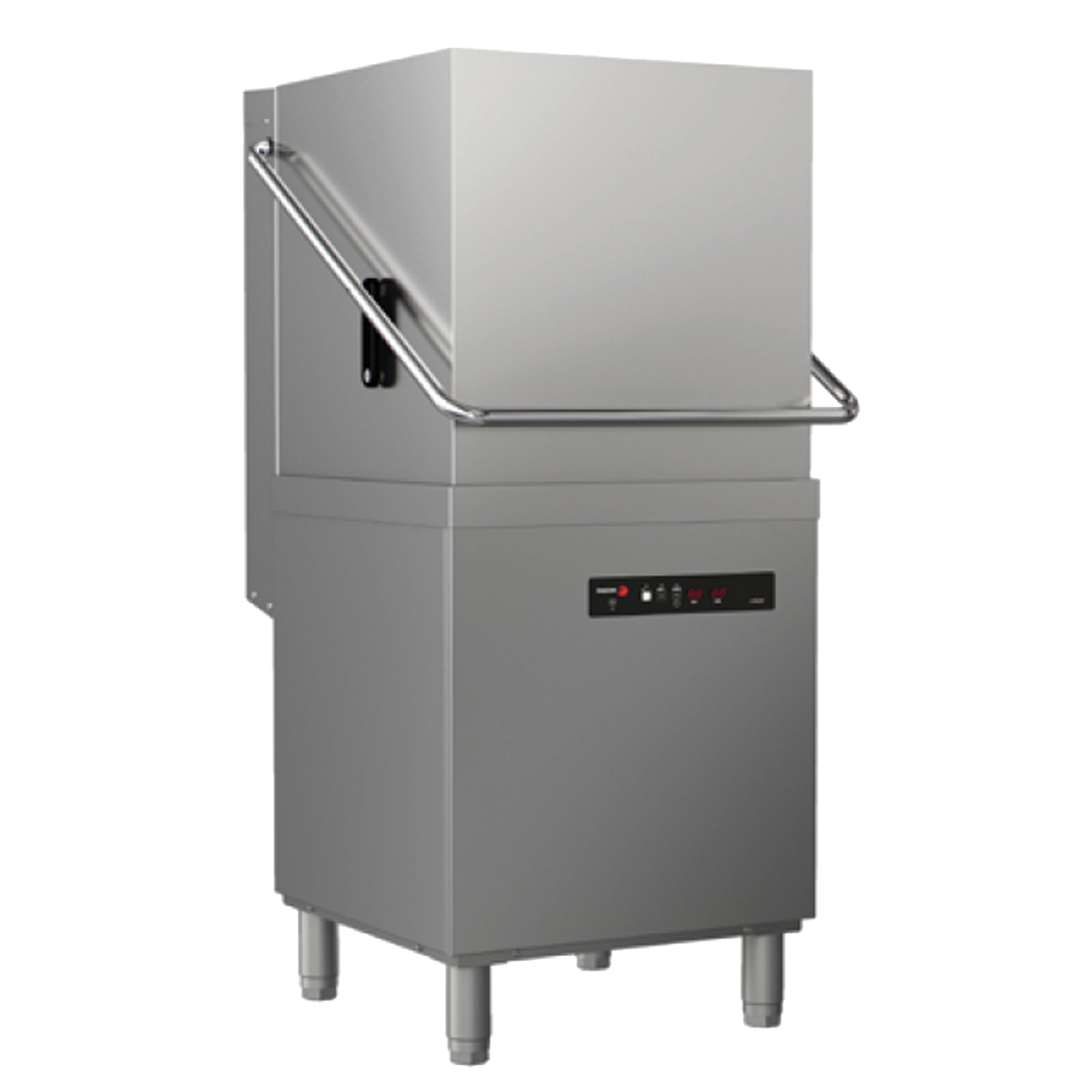

EVO-CONCEPT pass-through dishwasher with drain pump and detergent dispenser

• Hood type dishwasher – EVO Generation – Concept range.
• Hourly production: 65 baskets/hour – 1170 dishes/hour
• Clearance (max ware height): 440mm
• Electronic control
• Wash cycles: 55-75-120 seconds
• Stainless steel
• Counterbalanced hood
• Double rotating wash and rinse systems, made of AISI-304 stainless steel
• Wash pump, 600W each
• Drain pump: 70W drainage cycle
• Tank with capacity: 33 litres
• Boiler heating power: 6kW
• Boiler capacity: 9 litres
• Water consumption: 2.4 litres/rinse
• Thermostatic temperature control: washing at 60°C and rinsing at 90°C
• Thermostop
• Safety thermostats
• Built-in automatic rinse dispenser and detergent doser
• Built-in non-return valve
• Safety magnetic switch for hood opening
• Adjustable legs
• Supplied with 1 base basket; 1 plate basket and 2 cutlery containers
• Watermark approved
• Can be converted to single phase
• 415V / 50Hz

2 Years Parts and Labour Warranty
